Parent article: Production Video

In the Hall of Ocean Life at AMNH, we have three primary features we repeatedly set up. The main screen, the 10' Truss tower, and the Ascender16 at FOH.

HOL Main Screen

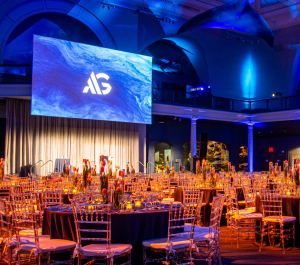

11' x 20' Screen in whale room

There are two primary configurations for screens in this room. Both involve a screen hung over the railing of the center of the far side of the room. Rigging sections for both are shown here.

•

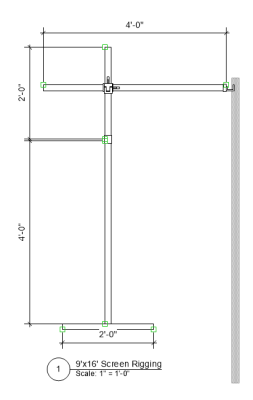

  9' x 16' Screen
•

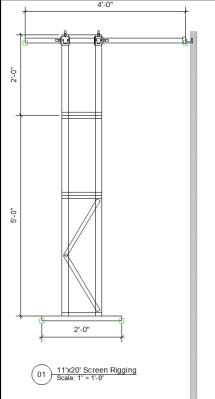

  11' x 20' Screen

Truss Tower

•
  10' Truss Tower

FOH

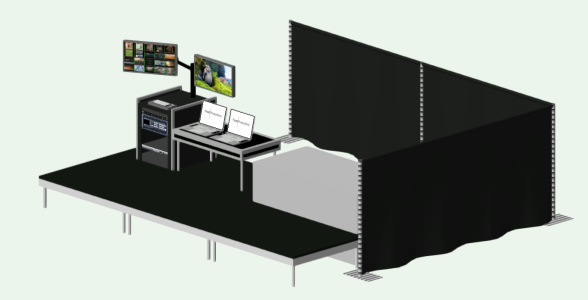

Our HOL FOH setup involves an Ascender16 and two laptops. This image shows the typical configuration. Just beyond the decks and monitors would be the stairs. The gray table next to us is where lighting/SM would be set up.

•
  AMNH Front of House
